All listed data sheetes and charts are scanned and saved in its genuine size.
Due to this, the download may last a bit longer. Click on the miniatures to enlarge the images

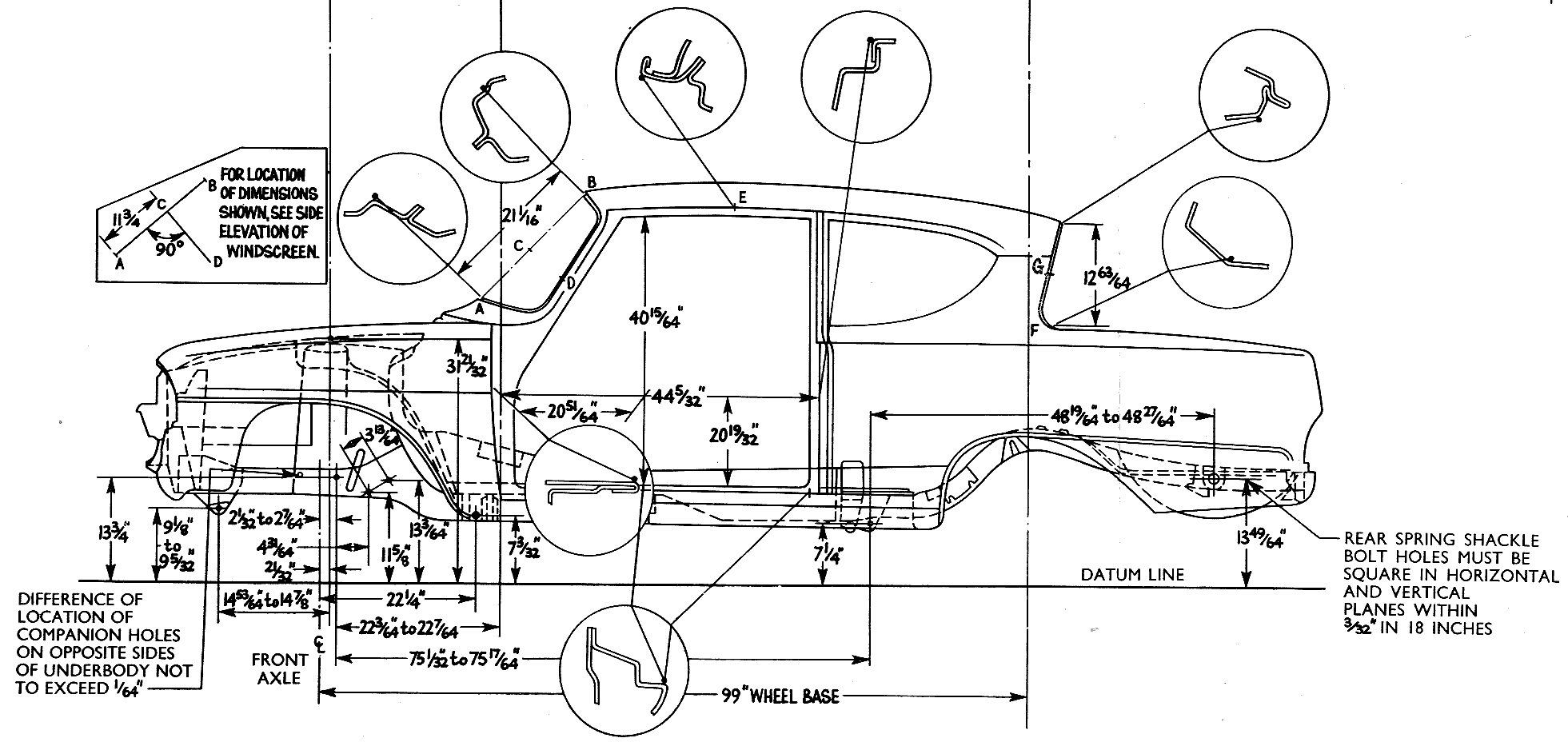

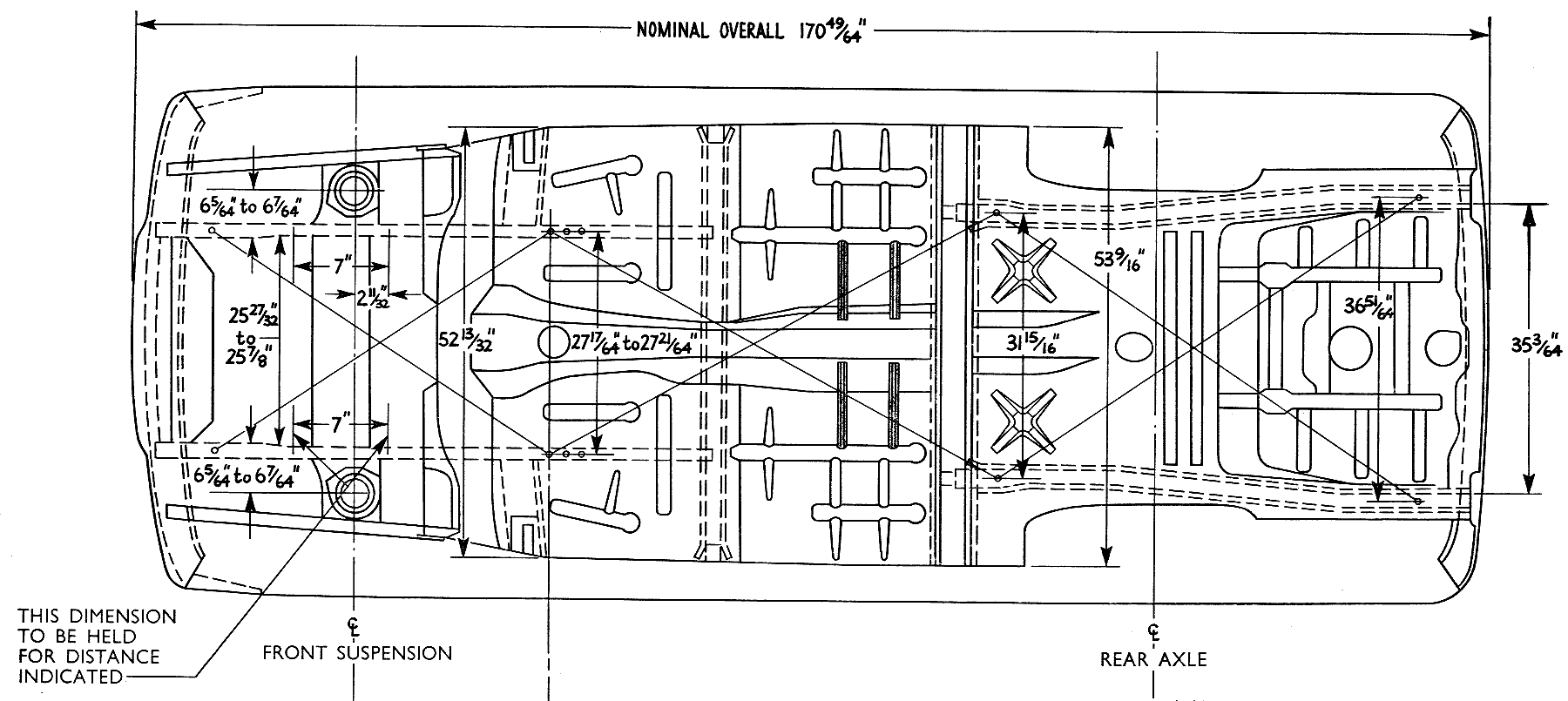

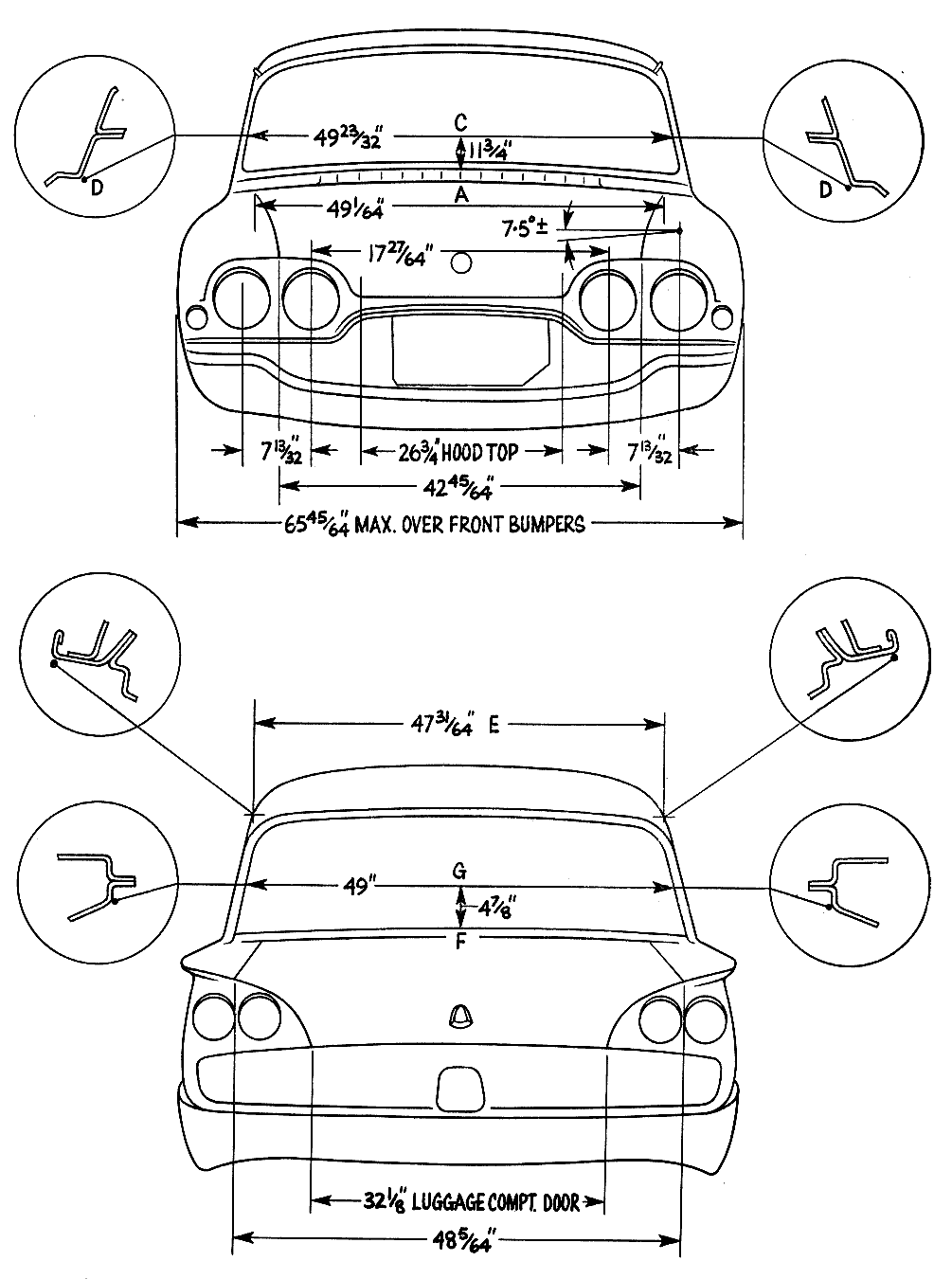

Body Tolerance Chart 2-door Classic

(3 Parts)

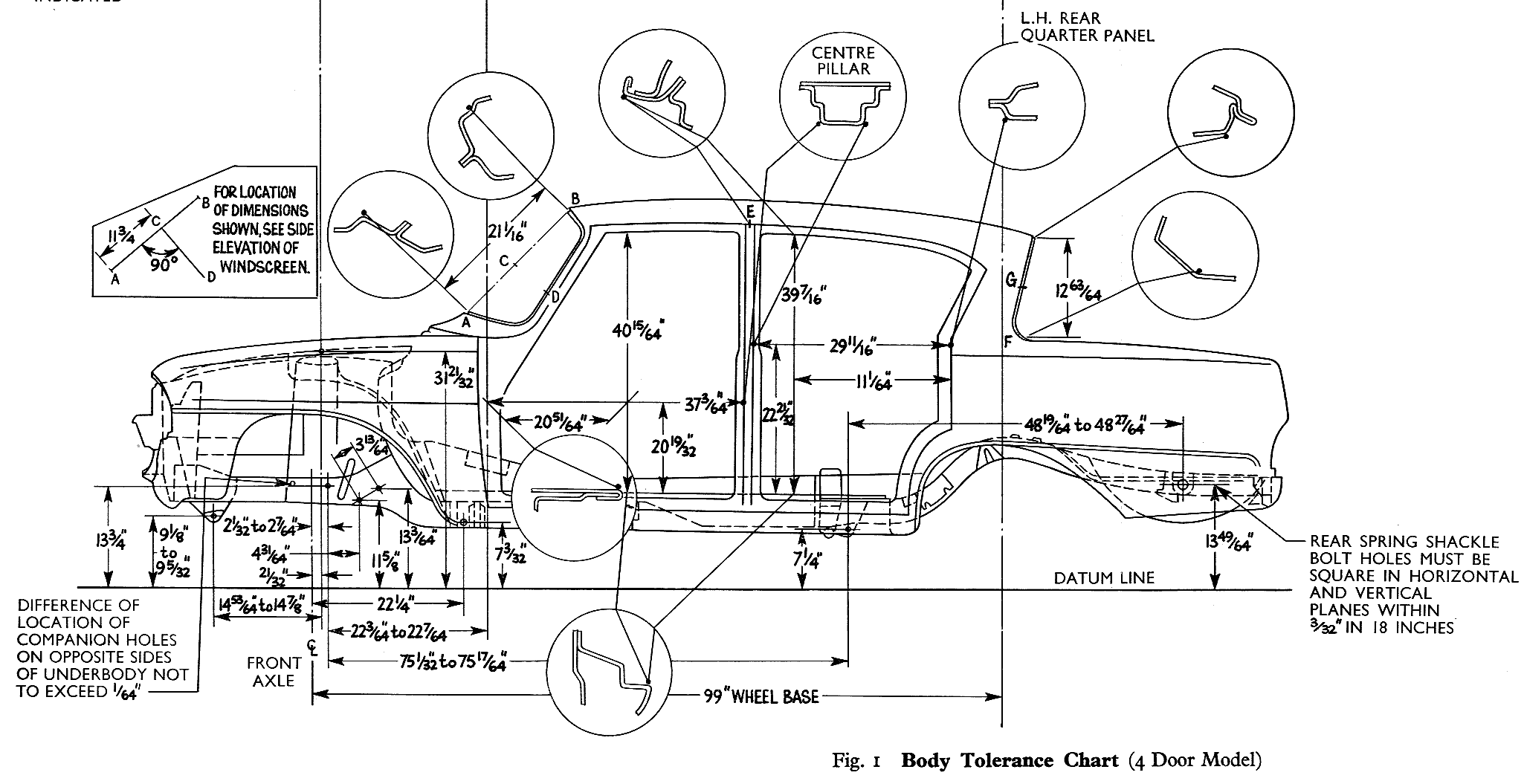

Body Tolerance Chart 4-door Classic

(3 Parts)

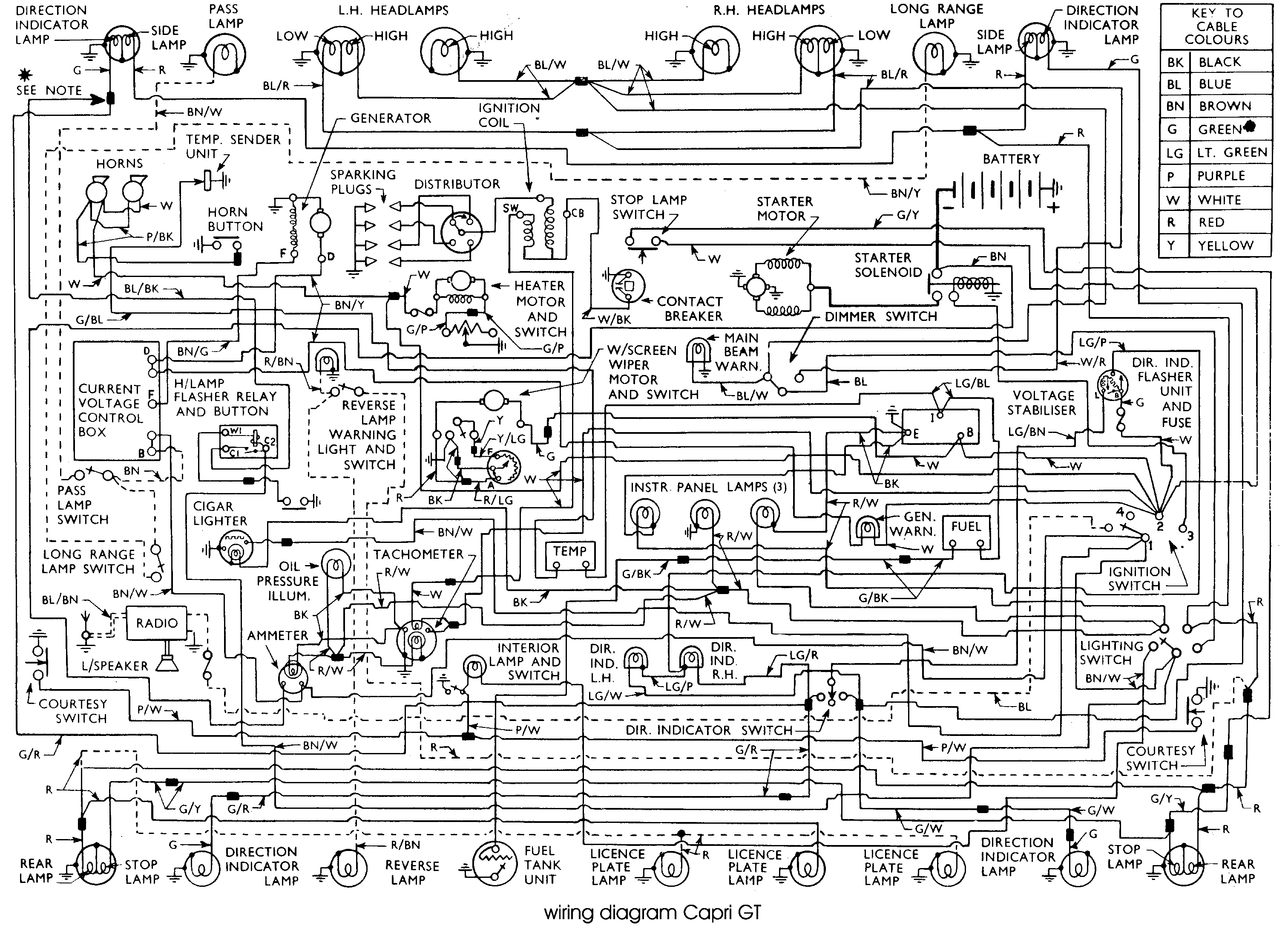

Wiring Diagram GT

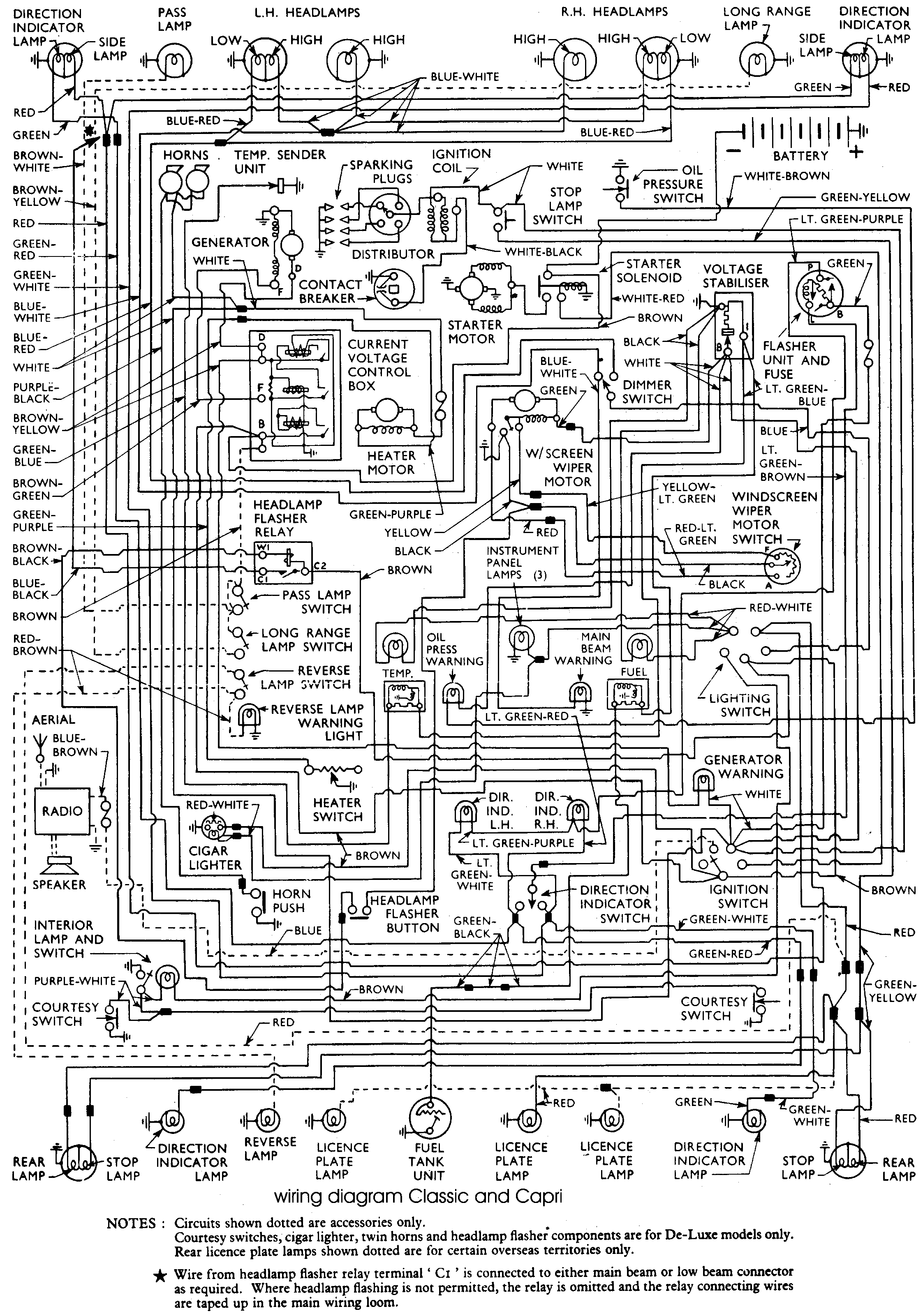

Wiring Diagram Classic and Capri

Wiring Layout

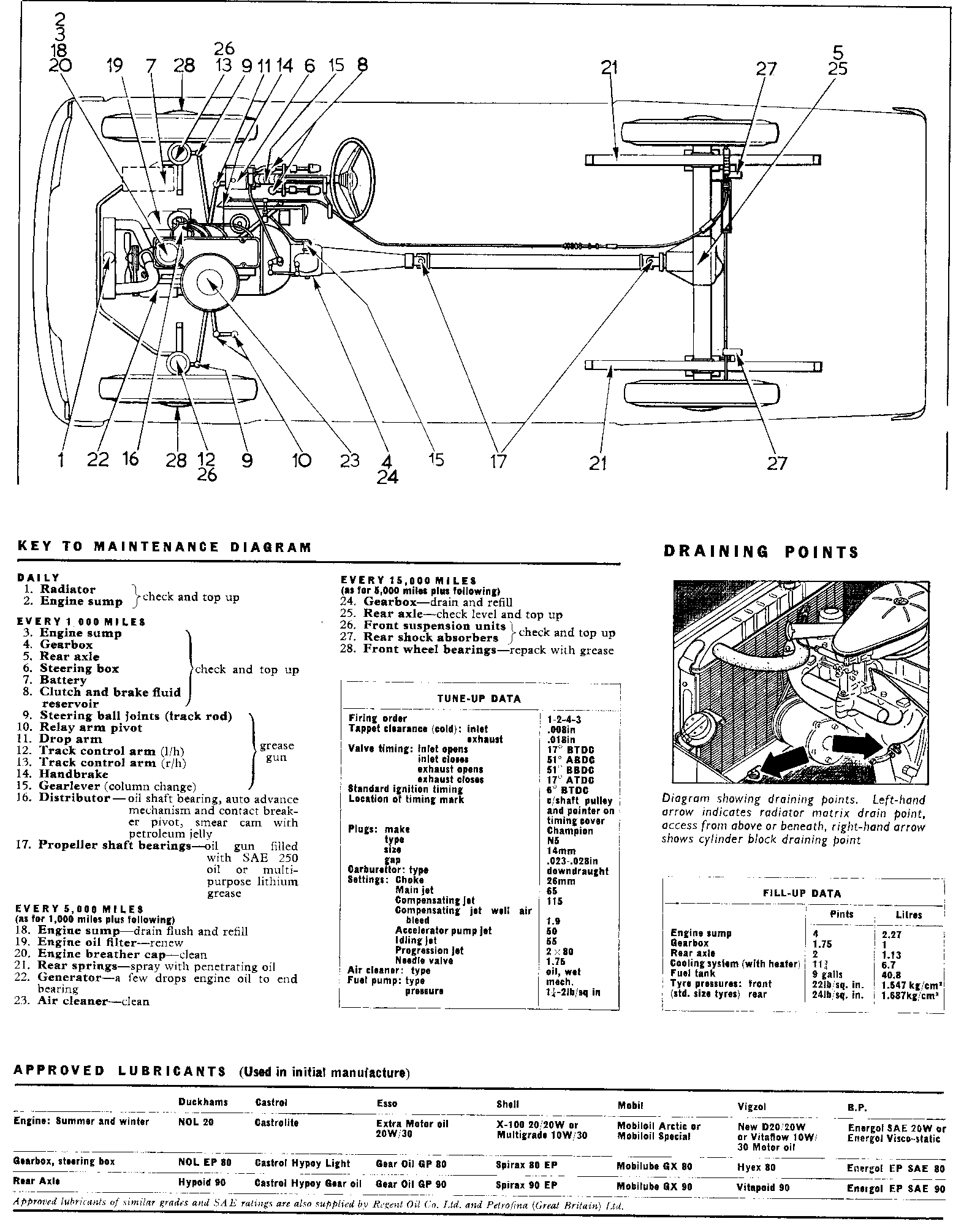

Lubrication Chart
Radio Wiring Diagram

Body Colours 1962/63

© Cersten Richter 1998, 1999, 2000
Last update: 20.10.04
